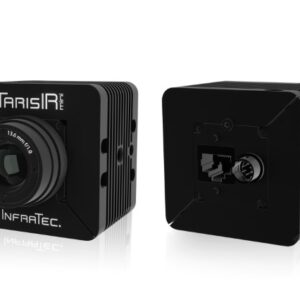

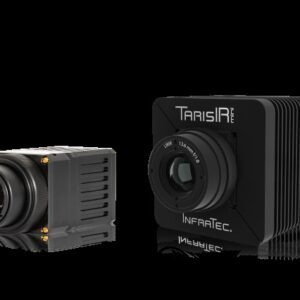

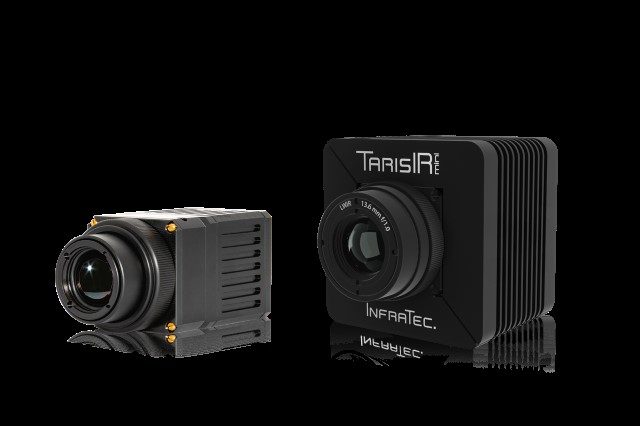

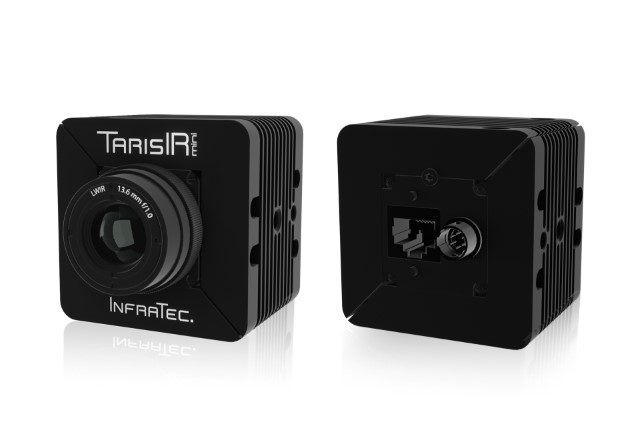

Compact Infrared Camera for Universal Use
Designed for universal use, the compact camera TarisIR® mini with the corresponding IRBIS® software from InfraTec enables entry-level access to stationary thermography at an excellent price-performance ratio. The radiometrically calibrated infrared camera is based on an uncooled microbolometer FPA detector of the latest generation with (640 × 480) IR pixels and a pixel pitch of only 12 µm. In combination with the high thermal resolution of 20 mK, the camera provides unprecedented image quality in this camera segment with exceptionally sharp detail.
Ready for Continuous Operation
The TarisIR® mini is designed for uncompromising continuous operation. It provides reliable thermographic real-time image data that can be operated in any position with a full-frame rate of up to 50 Hz. The camera measures in the long-wave atmospheric window of (8 … 14) µm, making it well suited for monitoring applications in outdoor areas. Algorithms specially developed for this detector technology in combination with a very comprehensive and sophisticated calibration process ensure precise results with a measurement accuracy of 2 %, even under difficult measurement conditions.
Fits into any Measuring Environment
The extremely small and robust light metal housing and the lightweight design of the camera module enable simple integration. In system environments with installation situations with limited space, high dynamic loads and adverse environmental conditions, small size and lightweight design are key – and the TarisIR® mini offers both! Depending on the application, the module can be combined with different lenses and thus optimally configured to suit the measuring task. The IP67 protection degree on the lens frontside facilitates integration even in adverse application conditions.
