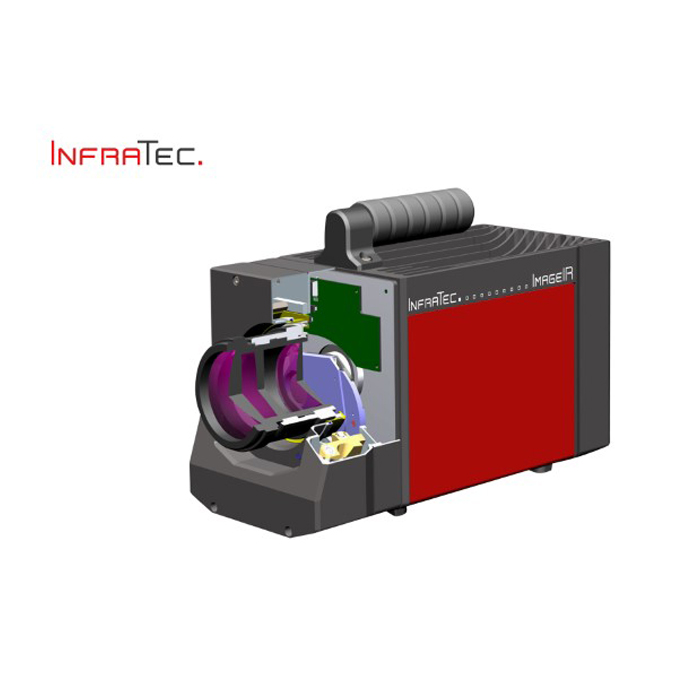

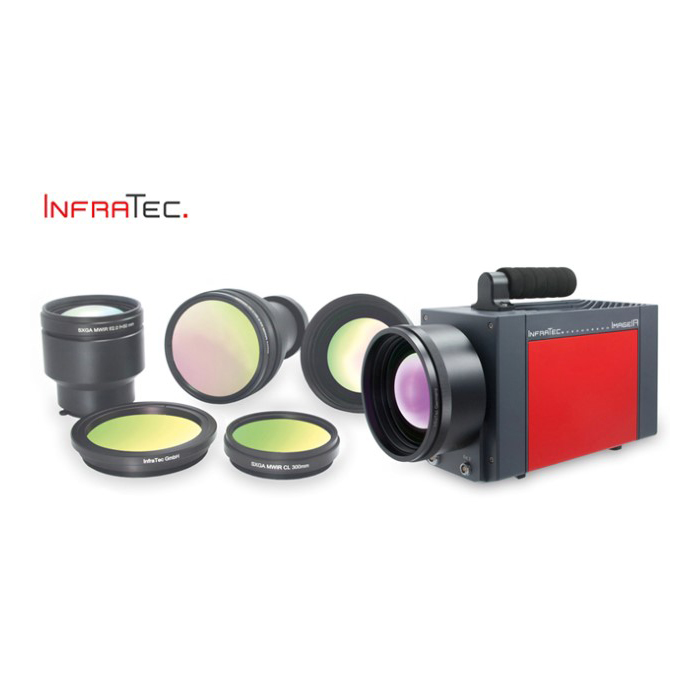

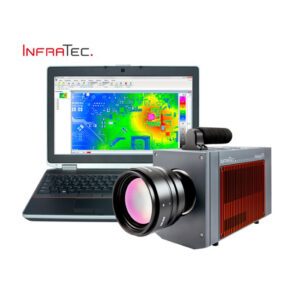

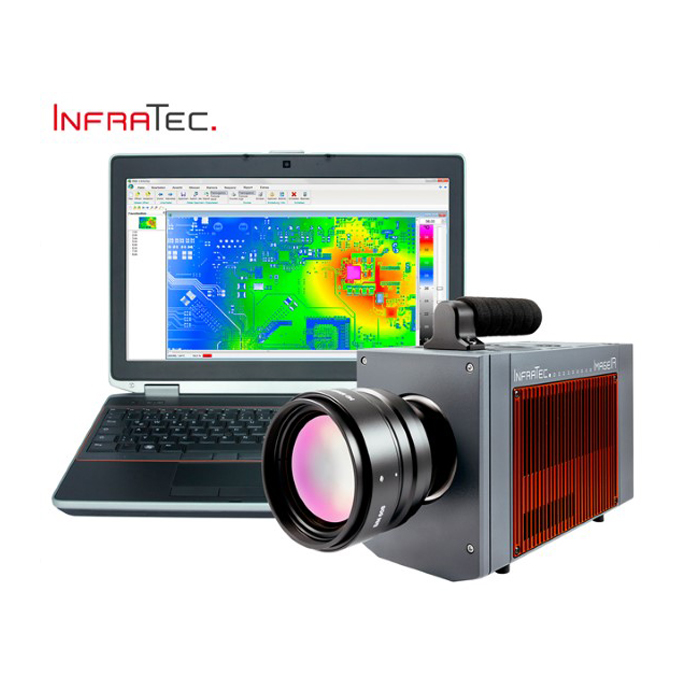

ImageIR High Speed IR Camera

Description

	Detection of Smallest Details The geometric resolution of (640 x 512) IR pixels ensures a brilliant image of the measured objects down to the smallest detail
	Precise Measurement at Top Speed With a frame rate of 1,004 Hz in full-frame mode, even extremely fast moving objects and highly dynamic thermal processes are detected
	Identification of the Smallest Temperature Differences With better than 20 mK the camera achieves an impressively high thermographic resolution
	Short Integration Times and Extremely High Frame Rates Large detector pixels (pixel pitch 25 µm) ensure particularly high detector sensitivity for the shortest integration times at extremely high frame rates
	Longer Cooler Lifetime Innovative HOT Long Life Technology extends cooler lifetime through higher working temperature and reduced cooling load
	Digital High-speed Data Acquisition Superfast industrial grade 10 GigE interface makes the thermographic images in real time available on your computer

Spectral range	(1.5 … 5.5) µm
Pitch	25 µm
Detector	T2SLS or InSb
Detector format (IR pixels)	(640 x 512)
Readout mode	IWR
Aperture	f/2.0
Detector cooling	Stirling cooler; HOT Long-Life (T2SLS)
Temperature measuring range	(-40 … 1,700) °C, up to 3,000 °C*
Measurement accuracy	± 1 °C or ± 1 %
Temperature resolution @ 30 °C	Better than 0.02 K
Frame rate	Up to 1,004/1,957/3,731/30,330 Hz
Window mode	Yes
Focus	Manual, motorised or automatically*
Dynamic range	14 bit
Integration time	(0.5 … 20,000) µs
