Description

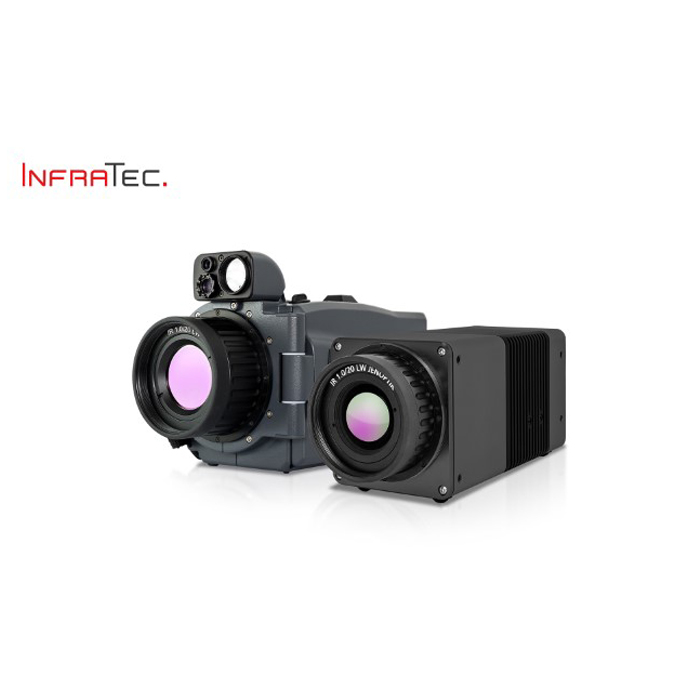

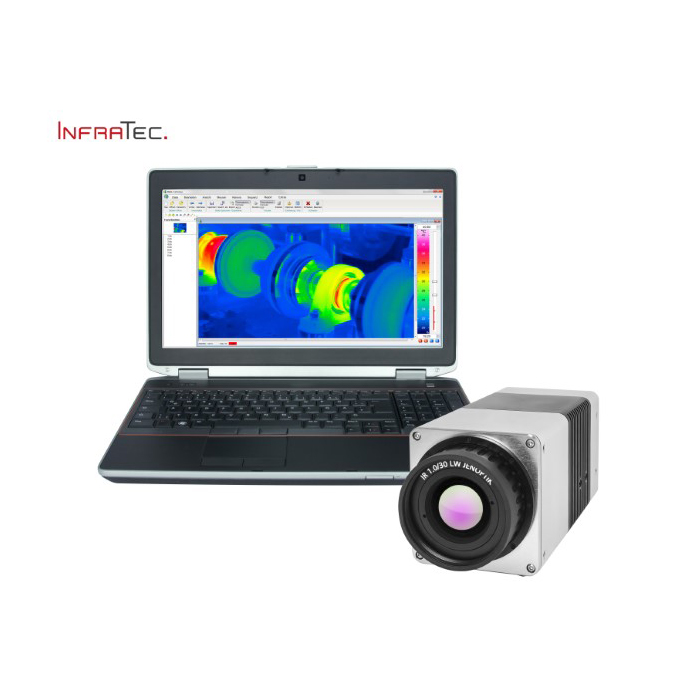

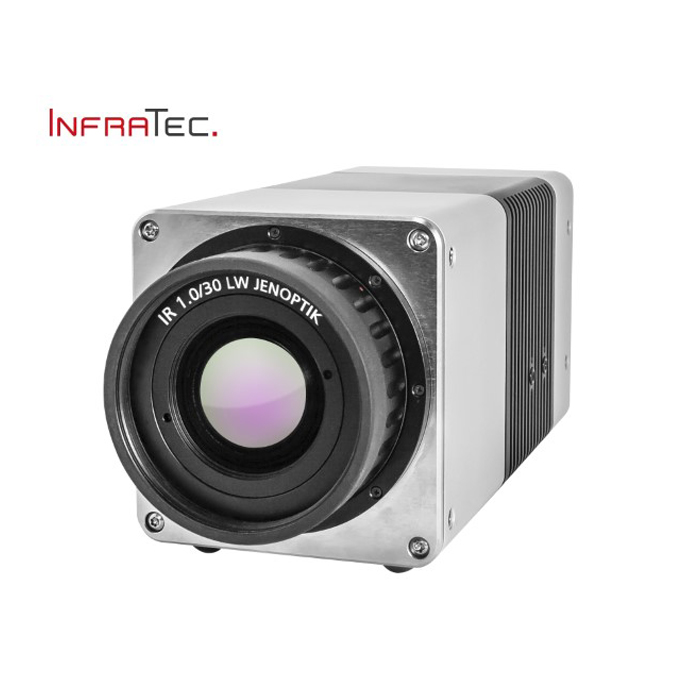

With its 3.1 megapixels in IR-format the worldwide unique infrared system VarioCAM®HD head 900 gives a new definition to the premium segment of uncooled industrial cameras and guarantees for precise infrared recordings in brilliant photographic quality.
- Image format: (2,048 × 1,536) IR pixel optomechanical MicroScan feature
- Recording and storage of IR frames rates with up to 240 Hz
- GigE- and process interface
- Rugged light metal housing IP67*
High-precision Calibration of Infrared Cameras Enables for High Accuracy of Measurements
The infrared camera VarioCAM® High Definition is calibrated using special algorithms. The specially developed calibration algorithm, with more than just a few calibration curves, is used for compensation of temperature fluctuations. Therefore, highest measuring accuracy and repeatability even at changing environmental temperatures is ensured. The exceptional high measuring accuracy can be reached across a wide temperature range.
Detection of Minor Defects through High Thermal Resolution
The thermal resolution describes the process to dissolve slightest temperature differences and thus, can display this measurement value. The infrared cameras of the VarioCAM® HD series have a high thermal resolution of up to 0.02 K that helps to display even slightest temperature differences with accuracy. In combination with the high-performance lenses this helps to detect critical faults at an early stage and display these in excellent quality.
