Description

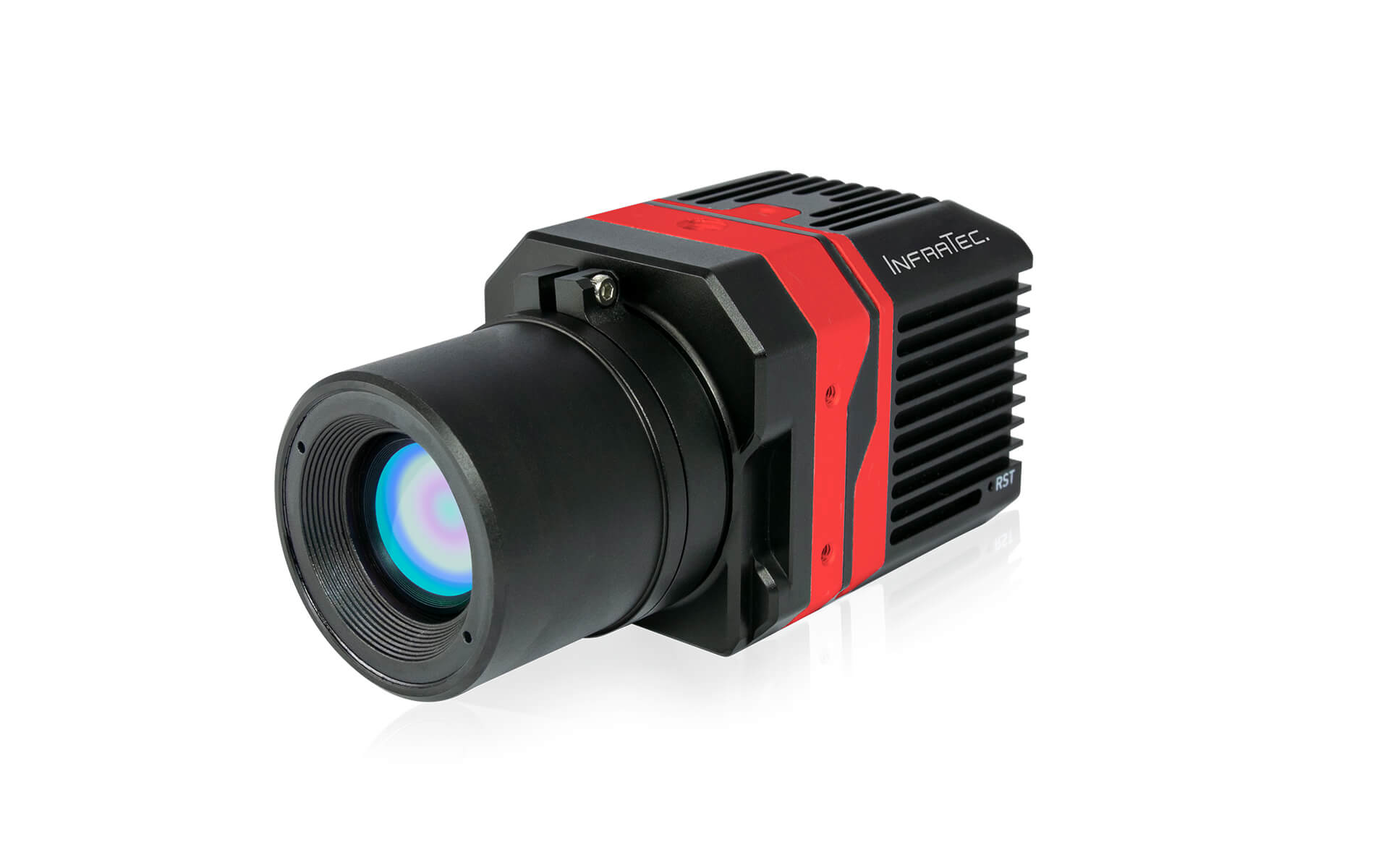

InfraTec’s radiometric infrared camera module PIR uc 605 is designed for universal use and enables the entry into stationary thermal imaging for research and development as well as into process optimisation.

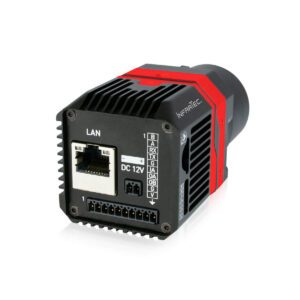

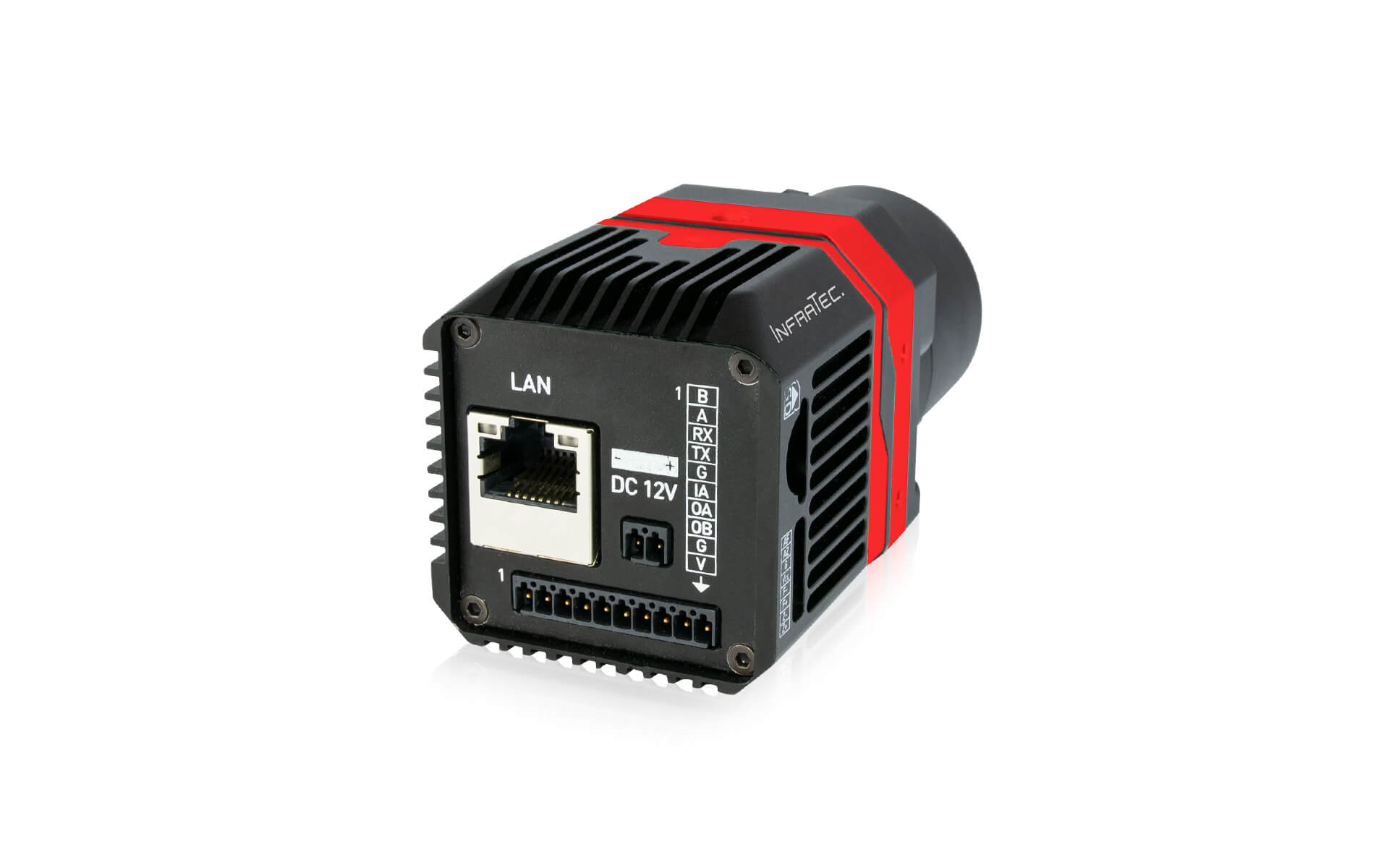

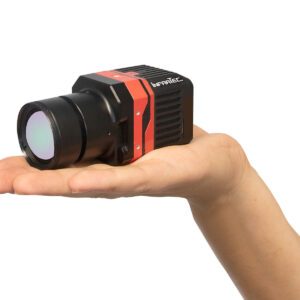

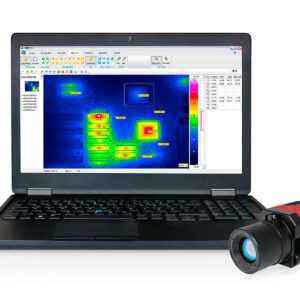

PIR uc 605 Thermal Camera
| Spectral range | (8… 14) µm |
|---|---|
| Detector | Uncooled Microbolometer Focal Plane Array |
| Detector format (IR pixels) | (640 x 480) |
| Temperature measuring range | -20 … 1000°C (depending on model) |
| Measurement accuracy | ± 5 K (0 … 100) °C, ± 5 % (< 0 respectively > 100) °C |
| Temperature resolution @ 30 °C | ≤ 0.06 K |
| Frame rate | 25hz |
| Storage media | To hard disk |
